Thank you for purchasing our products: Hotplate / Magnetic Stirrer. Users should read this Manual carefully, follow the instructions and procedures, and beware of all the cautions when using this instrument.
感谢您购买我们的产品：电热板/
磁力搅拌器。使用者需要仔细阅读该说明书根据提示操作本产品呢，并且在操作过程中注意所有注意事项。
Warranty保修期
This instrument is warranted to be free from defects in materials and workmanship under normal use and service, for a period of 12 months from the date of invoice. The warranty is extended only to the original purchaser. It shall not apply to any product or parts which have been damaged on account of improper installation, improper connections, misuse, accident or abnormal conditions of operation.
For claim under the warranty please contact with us. You many also send the instrument direct to our works or we send you the spare parts to help you resolve this problem in next order, enclosing the invoice copy and by giving reasons for the claim. You would be solely liable for freight costs.
本产品在保修期为自售出日期开始后12个月。保修期仅适用于**初采购商。因进口商不正当安装，不正确连接，或者错误使用而导致产品损坏不在保修范围内。
1 Safety Instructions安全提示
• When working, ware the personal guard to avoid the risk from: •
当使用时，请注意人身安全以避免以下危险：
- Splashing and evaporation of liquids - Release of toxic or combustible gases. - 液体的喷溅及蒸发
- 有毒气体及可燃气体的释放。
•
Set up the instrument in a spacious area on an stable, clean, non-slip, dry and fireproof surface, do not operate the instrument in explosive atmospheres, with hazardous substances or under water.
• #p#分页标题#e#
请把产品安装在开阔，稳定，干净，防滑，干燥并且防火的地方。不能在易燃易爆，危险物品及潮湿环境下使用。

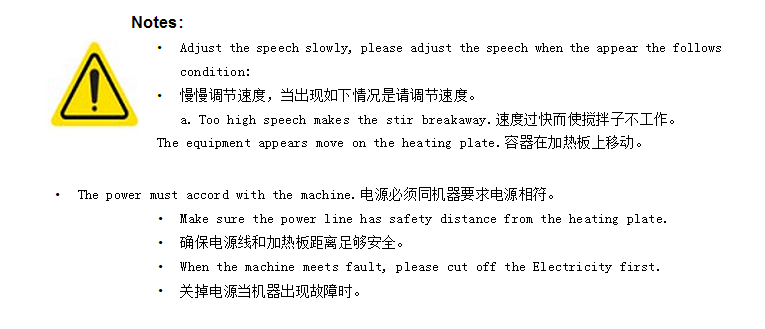

• Gradually increase the speed, reduce the speed if: •
请慢慢的调节速度当：
- The stirring bar breakaway because of too high speed
- The instrument is not running smoothly, or container moves on the base plate. - 搅拌子因为速度过快而跳动或者不转动。 -
产品运行不流畅或者容器移动**板面边缘。
• Beware of hazards due to: •
当操作时注意危险：
- Flammable material or media with a low boiling temperature - Overfilling of media - Unsafe container
- 易燃材料或者低沸点材料 - 样品过满 - 不安全的容器
• Process pathogenic materials only in closed vessels. • 如果是致病材料，请将其置于密闭容器中。
• If the case of the stirrer bar is PTFE, plate note: • 当搅拌子是PTFE材质时，请注意：
Elemental fluorine, three fluoride and alkali metals will corrode the PTFE and Halogen alkenes make it expansion at room temperature Molten alkali, alkaline earth metals or their solution, as well as the power in second and third ethnic of the Periodic Table of elements will have chemical reaction with PTFE when temperature reaches 300 ~400 ℃
氟元素，三氯化物及碱金属会腐蚀PTFE材料。在室温条件下卤素和烯烃会使其膨胀膨胀 。 碱金属或其他元素周期表中第二及第三周期的元素会和PEFE材料发生化学反应，当温度达到300 ~400 ℃时。
Check the instrument and accessories before hand for damage each time you use them.
每次使用前，请检查产品及配件是否完好以防止造成伤害。
Do not use damaged components. Safe operation is only guaranteed with the accessories described in the “Accessories” chapter. Accessories must be securely attached to the device and cannot come off by themselves. Always disconnect the plug before fitting accessories.
不要用已损坏的配件。配件必须完好的连接到机器上并且不能自动脱落。在安装配件时请拔掉电源。
• Ensure that the external temperature sensor is inserted in the media to a depth of at least 20mm.
• 确保外部温度传感器插入实验样品里**少20mm。
• When using metal vessels, do not place the temperature sensors on the bottom of the vessel.
•
当用金属容器时，不要将温度传感器放在金属容器底部。
Placing sensors on the vessel bottom can cause excessively high temperature to be measured especially in media which have poor conductivity. The tip of the measuring sensor must be at least 5mm from the vessel bottom, a distance of 10mm is ideal.
当将传感器置于容器底部时，会导致被测量温度极大的升高，尤其是试验样品导电性低的时候。传感器头部必须离容器底部5mm,10mm是**理想的距离。
• The instrument can only be disconnected from the main power supply by pulling out the mains plug or the connector plug.
• 必须在拔掉主电源插头或者连接器插头时才可以拔掉仪器电源。
• The voltage stated on the label must correspond to the main power supply. •
产品使用电压必须要和主电源电压一致.
• Ensure that the mains power supply cable does not touch the heating base plate. Do not cover the device.
• 确保主电源线不碰触产品加热元件，并且电源线不能缠绕仪器。
• Keep away from high magnetic field.
• 远离强磁区域。
• Observe the minimum distances between the devices, between the device and the wall and above the assembly (min.100mm). •
产品离墙体距离**少100mm.
2 Proper Uses
适用范围
The instrument is designed for mixing and / or heating liquids in schools, laboratories or factories. This device is not suitable for using in residential areas or other constraints mentioned in Chapter 1.
本产品适用于学校，实验室及工厂的液体搅拌 和/或 加热实验。本产品不适用于居民区或者其他1章内有约束条件的环境下。
3 Inspections 检验
3.1 Receiving Inspection 3.1 验收
Unpack the equipment carefully and check for any damages which may have arisen during transport. If it happens, please contact manufacturer for technical support.
小心的打开仪器包装并且检查是否在运输过程中产品有被损坏 。如果损坏，请联系工厂的技术支持部门。
3.2 Listing of Items 零件清单
The packing includes the following items: 箱内有如下货物： #p#分页标题#e#
With Magnetic Stirrer 带
磁力搅拌器的 Without Magnetic Stirrer 机体 1 机体 1 电源线 1 电源线 1 搅拌子 1 说明书 1 说明书 1 架杆 1 架杆 1 保险丝 1 保险丝 1
Table 2 Table 3
Please check the instrument and appendix with the packing list when you first open the instrument packing case. If you find there is something wrong with the instrument and the appendix, do contact the vendor or the producer.
当您**次打开产品箱子的时候，请根据配件清单核对产品及配件是否一致。如果有问题，请联系代理商或者工厂。
4 Trial Runs 调试
• Make sure the required operating voltage and power supply voltage match. • 确定电源电压和产品要求电压一致。
• Ensure the socket must be earthed reliably. • 确保电源插座必须接地。 • Ensure the power be off • 确定电源是关闭的。
• Plug in the power cable, ensure the power be on and begin initializing. • 插入电源，确定电源打开。
• Add the medium into the vessel with a stirring bar if with the magnetic stirrer function.
• 加入待实验样品**容器内。如果是带搅拌器的，把搅拌子放进去。 • Put the vessel on the work plate. • 把容器放在加热板面上。
• Set the rated stirring speed and start stirring. • 设定搅拌速度并开始搅拌。
• Observe the stirring bar and LCD display. • 观察搅拌子及LCD显示屏。
• Set the rated temperature and start heating. •
观察额定温度并且开始加热。
• Observe the real temperature on LCD display. • 观察LCD显示屏上的实际被测温度。
• Stop the heating and stirring functions. • 停止加热和搅拌功能。
If these operations above are normal, the device is ready to operate. If these operations are not normal, the device may be damaged during transportation, please contact manufacture for technical support.
如果以上操作正常，则此产品可以进行使用。如果有不正常的地方，则产品在运输过程中损坏，请联系制造商以获取技术支持。

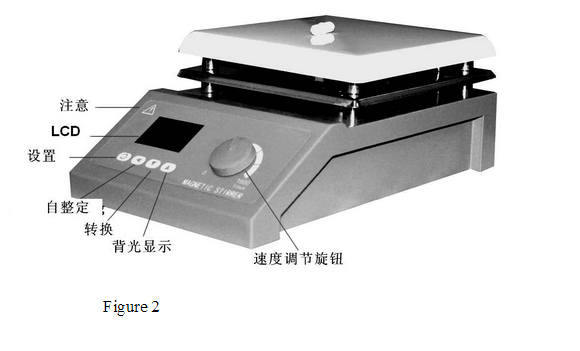

5 Control Panel
6 Operating Modes操作示例
6.1 Magnetic stirrer with hot plate operation:磁力搅拌器（带加热）
• Place the equipment on level worktable, and then put the container with liquid one the hotplate. • 将产品置于水平工作台上，并把盛有液体的容器置于加热板上。
•
Switch on the power accords with the machine, then power indicator light will be lighten; turn on the power of regulation knob, and turn the knob clockwise, then the working indicator light will be lighten; in the process of regulating, the light intensity changes according to different regulation position, and the temperature rises as well. •
打开电源，电源指示灯亮，顺时针调节电源旋钮，工作指示灯亮，在调节过程中，指示灯亮度会根据调节旋钮的移动而改变，同时温度上升。
